Iscar

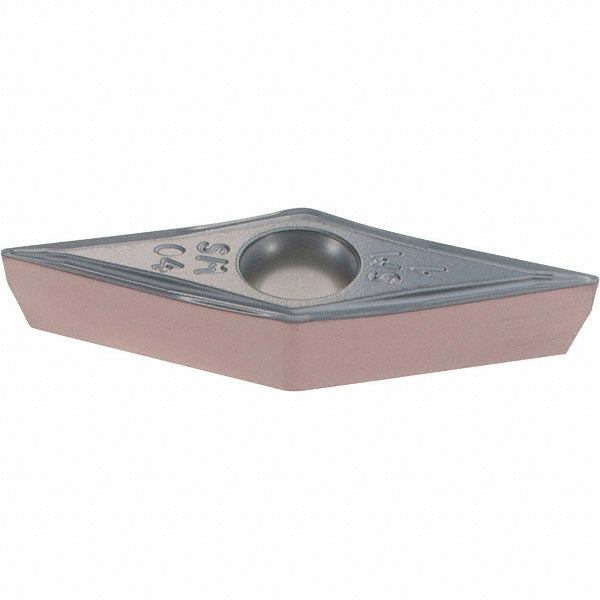

ISO 13399 Solid Carbide Insert, Grade IC806, TiAlN - Iscar 5509898
MFR# 5509898ISO/ANSI# ISO 13399Series Isoturn
$25.27List $32.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5509898 is a ISO 13399 solid carbide indexable insert, grade IC806, TiAlN coated. Suited for superalloy.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle35.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVCMT
Insert thickness in3/16
Iso codeISO 13399
Length range0.6500 - 0.7000
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.0984
Primary workpiece materialSuperalloy
RakePositive
Relief angle7
StandardsISO 13399
Stocking categoryD
Tolerance codeM
