Iscar

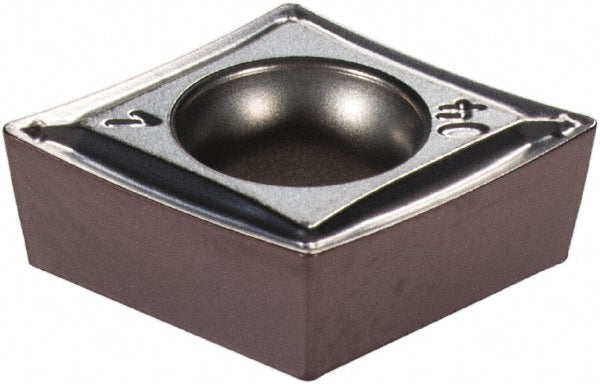

CCMT 3-1-SM Solid Carbide Insert, Grade IC806, TiN - Iscar 5509903
MFR# 5509903ISO/ANSI# CCMT 3-1-SMCat# CCMT 3-1-SMSeries Isoturn
$15.95List $20.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5509903 is a CCMT 3-1-SM solid carbide indexable insert, grade IC806, TiN coated. Suited for superalloy, titanium.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1730
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-1
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 3-1-SM
Length range0.3000 - 0.4000
Manufacturers catalog numberCCMT 3-1-SM
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.0980
Multi use toolYes
Primary workpiece materialSuperalloy; Titanium
RakePositive
Relief angle7
Single or double endSingle
StandardsISO 13399
Tolerance codeM
