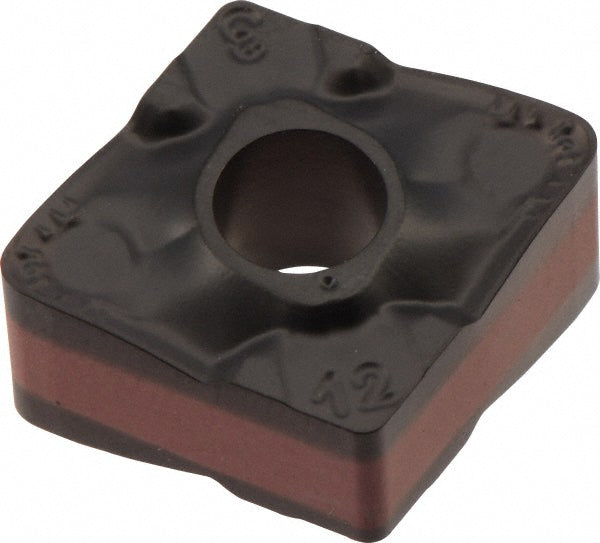

ISO 13399 Carbide Insert, Grade IC6025, TiCN - Iscar 5509918

MFR# 5509918ISO/ANSI# CNMX120712Series Heliturn

$20.89List $26.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC6025
MaterialCarbide
CoatingTiCN

Description

The Iscar 5509918 is a ISO 13399 carbide indexable insert, grade IC6025, TiCN coated.

Specifications

Ansi insert codeCNMX453
Ansi size code453
Chip breakerM4MW
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to High Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code453
Insert styleCNMX
Insert thickness0.2657
Iso codeISO 13399
Iso insert codeCNMX120712
Iso size code120712
Length range0.5000 - 0.6000
Manufacturer gradeIC6025
Maximum depth of cut0.2362
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Wiper edgeYes
