Iscar

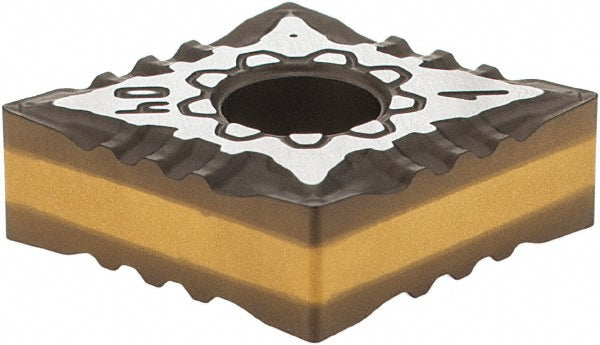

ISO 13399 Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5509949
MFR# 5509949ISO/ANSI# ISO 13399Series Isoturn
$18.01List $23.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5509949 is a ISO 13399 solid carbide indexable insert, grade IC8150, TiCN coated. Suited for p.
Specifications
Chip breakerF3P
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeISO 13399
Manufacturer gradeIC8150
Maximum depth of cut0.1380
Primary workpiece materialP
RakePositive
Relief angle0
Secondary workpiece materialK
StandardsISO 13399
Stocking categoryD
Tolerance codeM
