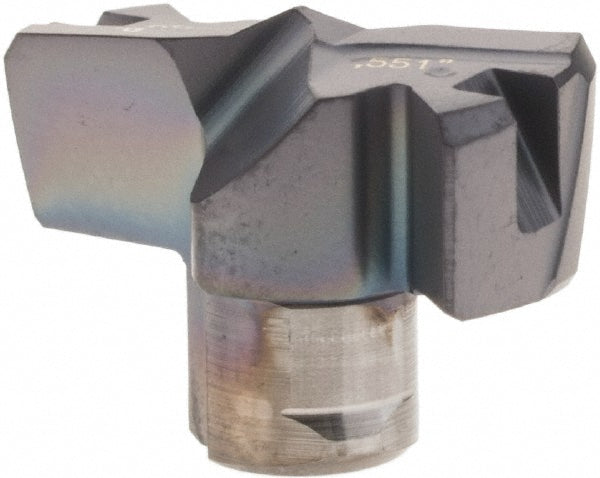

Carbide Insert, Grade IC908, TiAlN - Iscar 5509963
MFR# 5509963Series FCP
$100.65List $128.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5509963 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsHole Making; Chamfering; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.5510
Drill point angle140
Flute length (mm)5.00
Flute typeStraight
Functional length0.1891
Height0.217
Included angle degree140
Insert geometryP
Insert holding methodClamp
Insert seat size14
Iso numberFCP 140
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2407
Point typeFlat
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Spiral typeStraight
StandardsISO 13399
StyleFCP
Tip materialSolid Carbide
Web thinningWeb Thinned
