Iscar

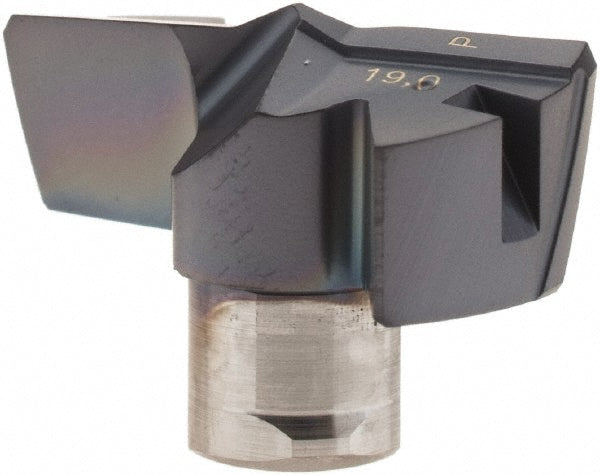

Carbide Insert, Grade IC908, TiAlN - Iscar 5509973
MFR# 5509973Series FCP
$134.22List $171.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5509973 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.7480
Drill point angle140
Flute typeSpiral
Functional length0.2560
Height0.2830
Included angle degree140
Insert geometryP
Insert holding methodTwist
Insert seat size19
Iso numberFCP 190
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.2830
Point typeThinned
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleFlat Bottom
Tip materialSolid Carbide
Web thinningWeb Thinned
