Iscar

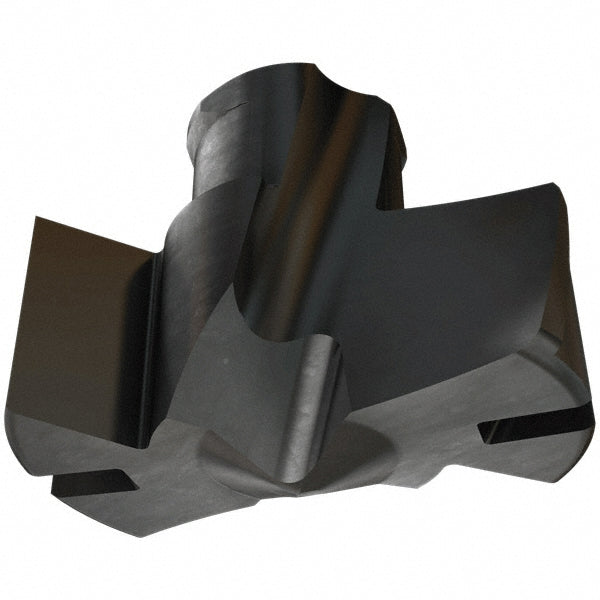

Carbide Insert, Grade IC908, TiAlN - Iscar 5509981
MFR# 5509981Series FCP
$162.51List $204.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5509981 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter in29/32
Drill point angle140
Flute typeSpiral
Functional length0.3390
Height0.3660
Included angle degree140
Insert geometryP
Insert holding methodTwist
Insert seat size23
Iso numberFCP 230
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.3660
Point typeThinned
Primary workpiece materialSteel; Cast Iron
Secondary workpiece materialStainless Steel; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleFlat Bottom
Tip materialSolid Carbide
Web thinningWeb Thinned
