Iscar

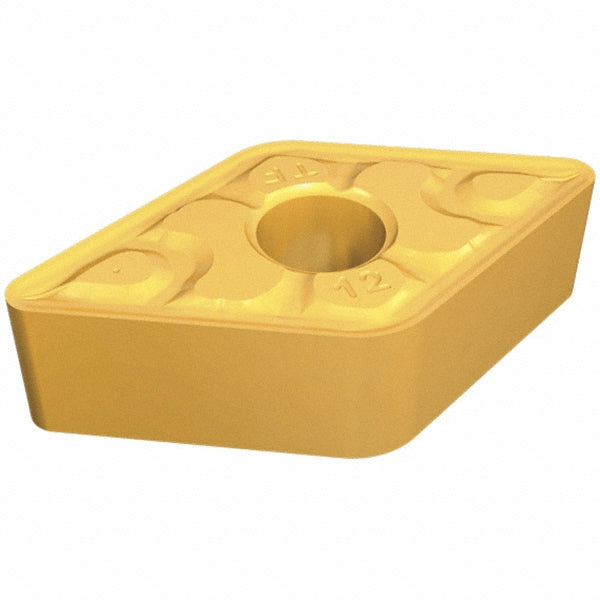

ISO 13399 Solid Carbide Insert, Grade IC806, TiAlN - Iscar 5509994
MFR# 5509994ISO/ANSI# ISO 13399Series Isoturn
$25.11List $32.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5509994 is a ISO 13399 solid carbide indexable insert, grade IC806, TiAlN coated. Suited for superalloy, titanium.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code442
Insert styleDNMG
Insert thickness in1/4
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.1380
Primary workpiece materialSuperalloy; Titanium
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
