Iscar

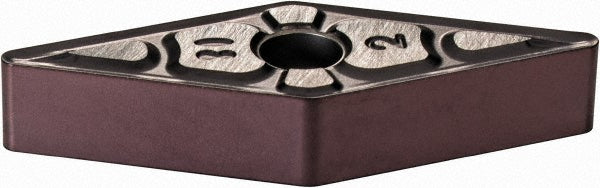

VNMG 332-TF Solid Carbide Insert, Grade IC806, TiN - Iscar 5509998
MFR# 5509998ISO/ANSI# VNMG 332-TFCat# VNMG 332-TFSeries Isoturn
$25.81List $33.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5509998 is a VNMG 332-TF solid carbide indexable insert, grade IC806, TiN coated. Suited for superalloy, titanium.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Included angle35.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 332-TF
Length range0.6500 - 0.7000
Manufacturers catalog numberVNMG 332-TF
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.1380
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialSuperalloy; Titanium
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
