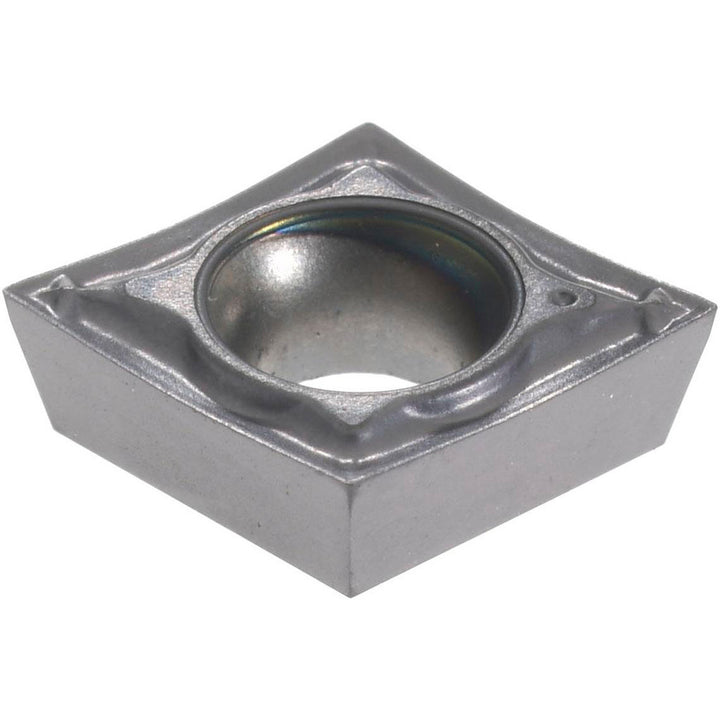

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5510088

Iscar

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5510088

MFR# 5510088ISO/ANSI# CPGT060201Series Isoturn

$24.25List $31.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC907
MaterialCarbide
CoatingTiAlN

Description

The Iscar 5510088 is a ISO 13399 carbide indexable insert, grade IC907, TiAlN coated. Suited for universal.

Specifications

Ansi insert codeCPGT2-004
Ansi size code2-004
Chip breakerSM
Chip breaker operationFinishing; Medium Machining
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Mo
Hole diameter0.1100
Included angle80
Inscribed circle0.2500
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2-004
Insert styleCPGT
Iso codeISO 13399
Iso insert codeCPGT060201
Iso size code060201
Manufacturer gradeIC907
Maximum depth of cut0.0790
Primary workpiece materialUniversal
RakePositive
Side clearanceNegative
StandardsISO 13399
Tolerance codeG
