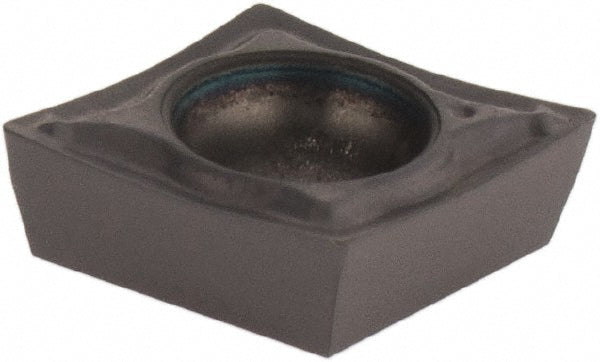

CPGT21.50.5 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5510089
MFR# 5510089ISO/ANSI# CPGT21.50.5Series Isoturn
$24.68List $31.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5510089 is a CPGT21.50.5 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerSM
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1102
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-0
Insert styleCPGT
Insert thickness in3/32
Iso codeCPGT21.50.5
Length range0.0000 - 0.3000
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.0790
Primary workpiece materialH; M; S
RakePositive
Relief angle11
StandardsISO 13399
Tolerance codeG
