Iscar

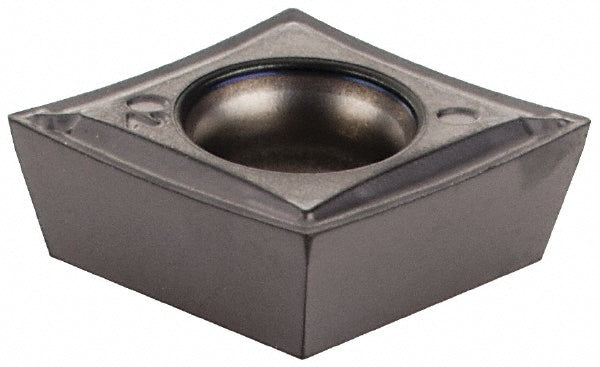

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5510092
MFR# 5510092ISO/ANSI# ISO 13399Series Isoturn
$27.61List $35.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5510092 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerSM
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3740
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-0
Insert styleCPGT
Insert thickness in5/32
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.0980
Primary workpiece materialH; M; S
RakePositive
Relief angle11
StandardsISO 13399
Tolerance codeG
