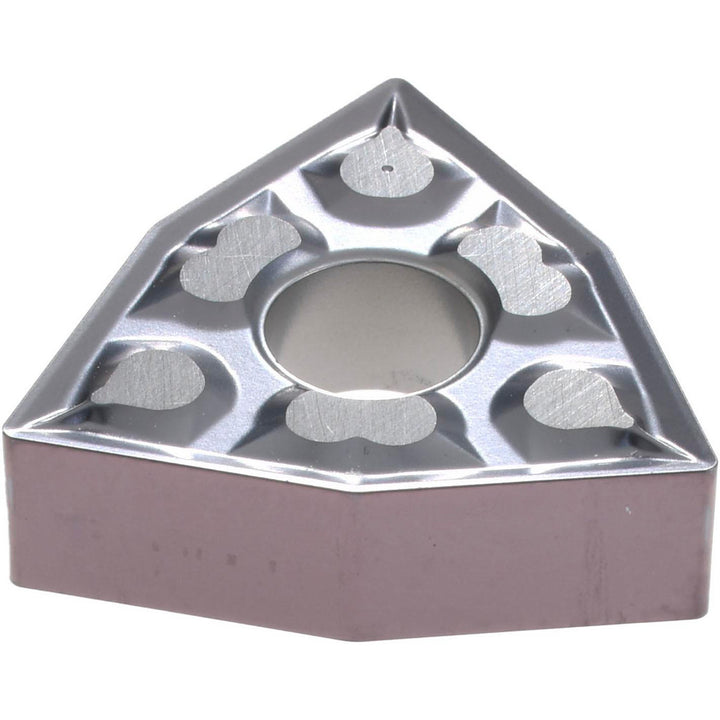

ISO 13399 Carbide Insert, Grade IC806, TiAlN - Iscar 5510098

Iscar

ISO 13399 Carbide Insert, Grade IC806, TiAlN - Iscar 5510098

MFR# 5510098ISO/ANSI# WNMG080404Series Isoturn

$17.93List $23.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeIC806
MaterialCarbide
CoatingTiAlN

Description

The Iscar 5510098 is a ISO 13399 carbide indexable insert, grade IC806, TiAlN coated.

Specifications

Ansi insert codeWNMG431
Ansi size code431
Chip breakerTF
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeWNMG080404
Iso size code080404
Length range0.3000 - 0.4000
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.1575
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Stocking categoryD
Tolerance codeM
