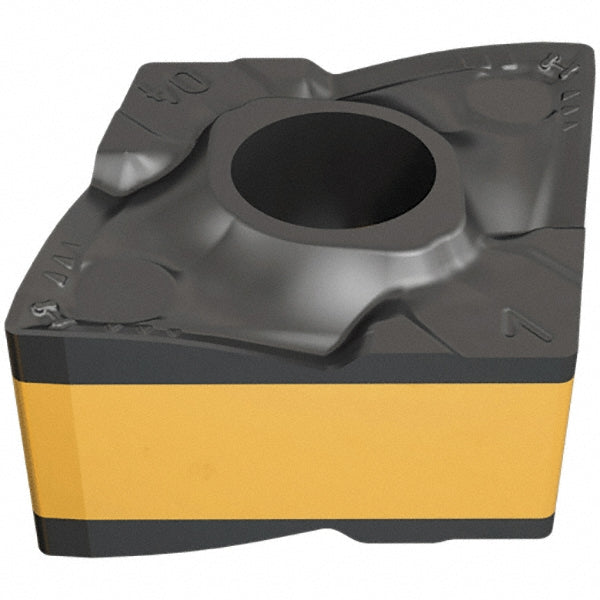

ISO 13399 Solid Carbide Insert, Grade IC806, TiAlN - Iscar 5510107
MFR# 5510107ISO/ANSI# ISO 13399Series Heliturn
$19.11List $24.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC806
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5510107 is a ISO 13399 solid carbide indexable insert, grade IC806, TiAlN coated. Suited for superalloy.
Specifications
Chip breakerM4M
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code451
Insert styleCNMX
Insert thickness0.2657
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.1970
Primary workpiece materialSuperalloy
RakePositive
Relief angle0
Secondary workpiece materialM
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Wiper edgeYes
