Iscar

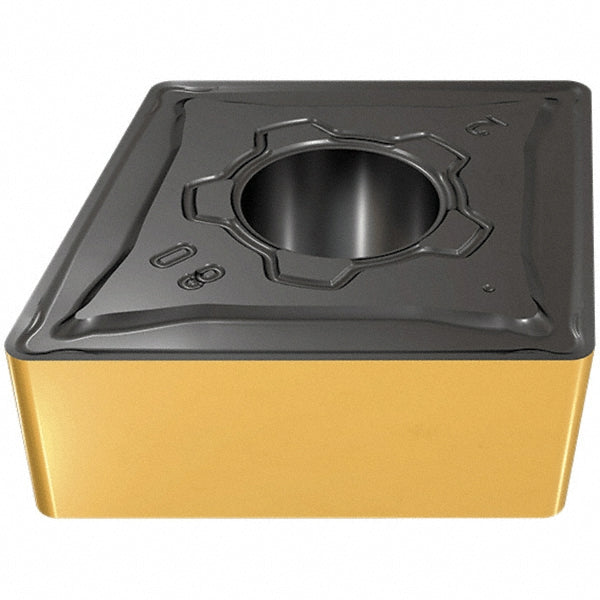

ISO 13399 Solid Carbide Insert, Grade IC6025, TiCN - Iscar 5510178
MFR# 5510178ISO/ANSI# ISO 13399Series Isoturn
$26.35List $33.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeIC6025
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5510178 is a ISO 13399 solid carbide indexable insert, grade IC6025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerM3M
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Included angle80.0
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert length0.6366
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC6025
Maximum depth of cut0.2756
Primary workpiece materialStainless Steel
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
