Iscar

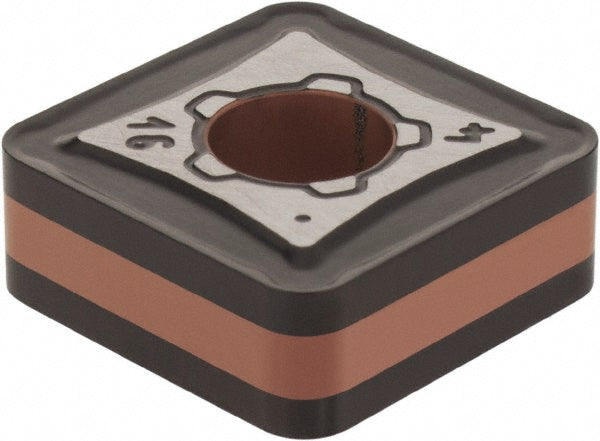

SNMG434 Solid Carbide Insert, Grade IC6025, TiCN - Iscar 5510190
MFR# 5510190ISO/ANSI# SNMG434Series Isoturn
$17.00List $21.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC6025
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5510190 is a SNMG434 solid carbide indexable insert, grade IC6025, TiCN coated. Suited for m.
Specifications
Chip breakerM3M
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Hole diameter0.2030
Included angle90.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialSolid Carbide
Insert shapeSquare
Insert size code434
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG434
Manufacturer gradeIC6025
Maximum depth of cut0.1970
Primary workpiece materialM
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Width in1/2
