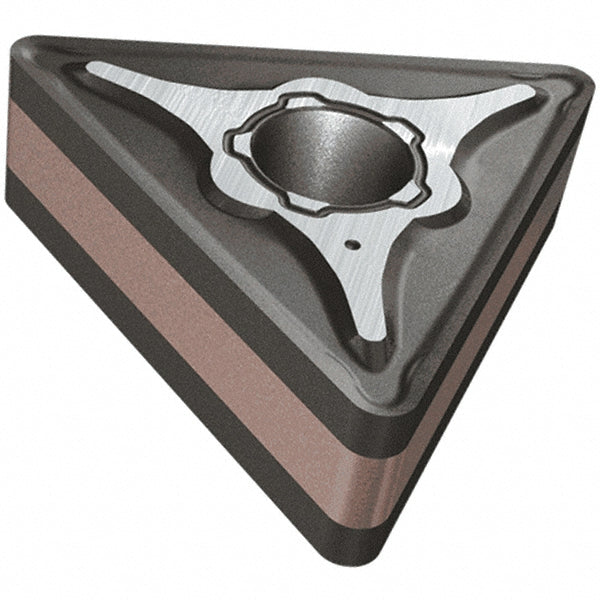

ISO 13399 Solid Carbide Insert, Grade IC6025, TiCN - Iscar 5510196
MFR# 5510196ISO/ANSI# ISO 13399Series Isoturn
$20.74List $26.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeIC6025
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5510196 is a ISO 13399 solid carbide indexable insert, grade IC6025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerM3M
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle60.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.8660
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.7000 - 10.0000
Manufacturer gradeIC6025
Maximum depth of cut0.1970
Primary workpiece materialStainless Steel
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
