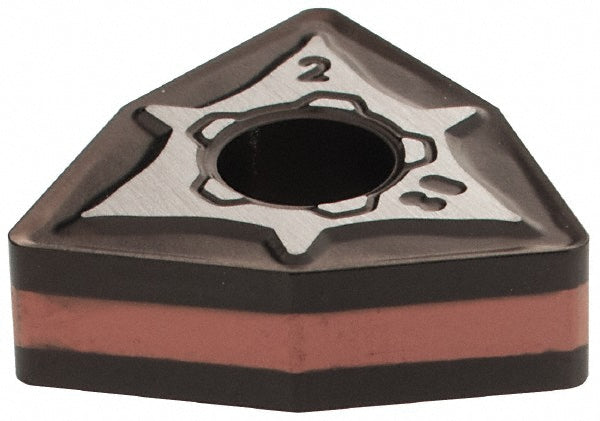

ISO 13399 Solid Carbide Insert, Grade IC6025, TiCN - Iscar 5510202
MFR# 5510202ISO/ANSI# ISO 13399Series Isoturn
$19.49List $25.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC6025
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5510202 is a ISO 13399 solid carbide indexable insert, grade IC6025, TiCN coated. Suited for m.
Specifications
Chip breakerM3M
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC6025
Maximum depth of cut0.1970
Primary workpiece materialM
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
