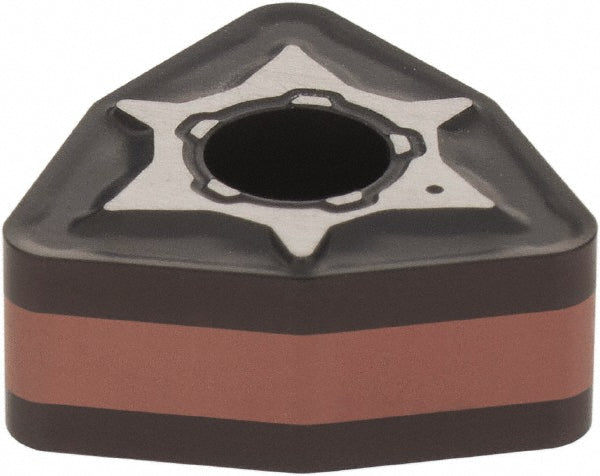

ISO 13399 Solid Carbide Insert, Grade IC6015, TiCN - Iscar 5510284
MFR# 5510284ISO/ANSI# ISO 13399Series Isoturn
$15.05List $19.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC6015
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5510284 is a ISO 13399 solid carbide indexable insert, grade IC6015, TiCN coated. Suited for m.
Specifications
Chip breakerM3M
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Hole diameter0.1500
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code333
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC6015
Maximum depth of cut0.1378
Primary workpiece materialM
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
