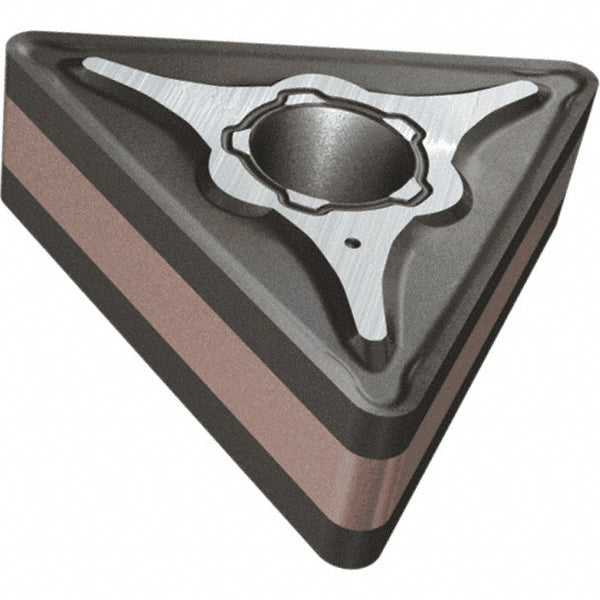

ISO 13399 Solid Carbide Insert, Grade IC6015, TiCN - Iscar 5510314
MFR# 5510314ISO/ANSI# ISO 13399Series Isoturn
$14.19List $18.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC6015
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5510314 is a ISO 13399 solid carbide indexable insert, grade IC6015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerM3M
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle60.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC6015
Maximum depth of cut0.1575
Primary workpiece materialStainless Steel
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
