Iscar

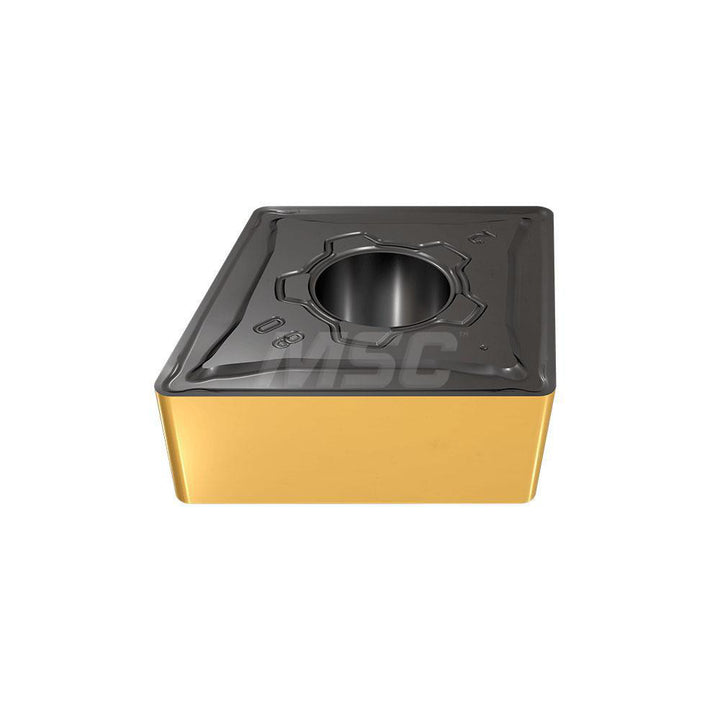

CNMG 332-M3M Solid Carbide Insert, Grade IC6025, TiCN - Iscar 5510333
MFR# 5510333ISO/ANSI# CNMG 332-M3MSeries Isoturn
$13.88List $17.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC6025
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5510333 is a CNMG 332-M3M solid carbide indexable insert, grade IC6025, TiCN coated. Suited for m.
Specifications
Chip breakerM3M
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Full radiusNo
Hole diameter0.1500
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.3810
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 332-M3M
Length range0.3000 - 0.4000
Manufacturer gradeIC6025
Maximum depth of cut0.1770
Multi use applicationFacing
Multi use toolYes
Primary workpiece materialM
RakePositive
Relief angle0
Secondary workpiece materialNone
Single or double endDouble
StandardsISO 13399
Tolerance codeM
