Iscar

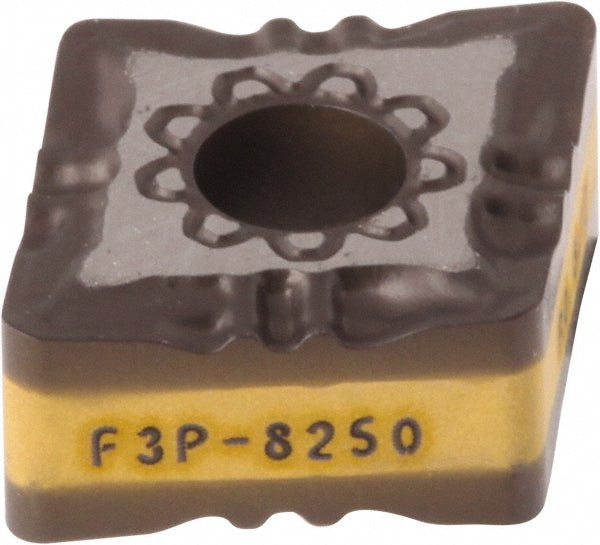

CNMG 332-F3P Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5510337
MFR# 5510337ISO/ANSI# CNMG 332-F3PSeries Isoturn
$13.64List $17.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5510337 is a CNMG 332-F3P solid carbide indexable insert, grade IC8250, TiCN coated. Suited for p.
Specifications
Chip breakerF3P
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Full radiusNo
Hole diameter0.1500
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.3810
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 332-F3P
Length range0.3000 - 0.4000
Manufacturer gradeIC8250
Maximum depth of cut0.1380
Multi use applicationFacing
Multi use toolYes
Primary workpiece materialP
RakePositive
Relief angle0
Secondary workpiece materialNone
Single or double endDouble
StandardsISO 13399
Tolerance codeM
