Iscar

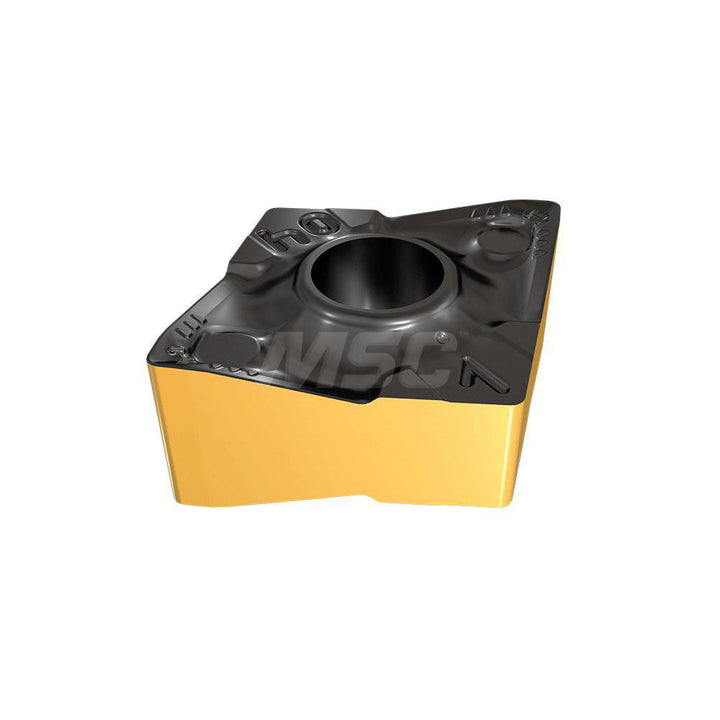

CNMX 342-M3PW Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5510341
MFR# 5510341ISO/ANSI# CNMX 342-M3PWSeries Isoturn
$15.36List $19.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5510341 is a CNMX 342-M3PW solid carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerM3PW
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Full radiusNo
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.3810
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code342
Insert styleCNMX
Insert thickness0.1740
Iso codeCNMX 342-M3PW
Length range0.3000 - 0.4000
Manufacturer gradeIC8250
Maximum depth of cut0.1970
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
Secondary workpiece materialNone
Single or double endDouble
StandardsISO 13399
Tolerance codeM
Wiper edgeYes
