Iscar

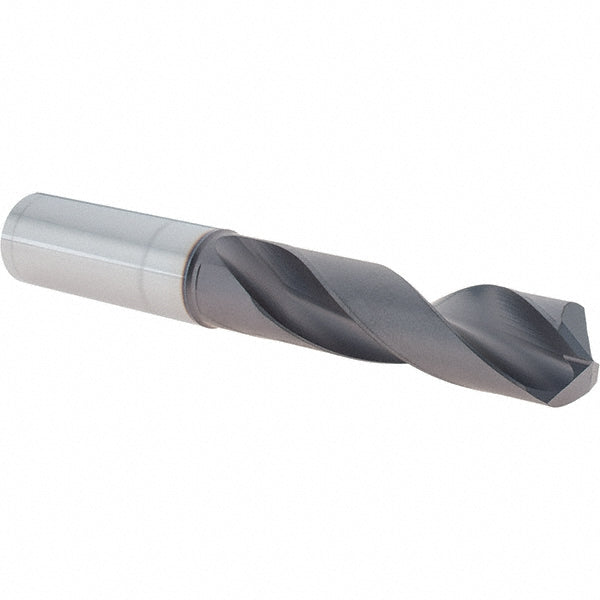

0.6693" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Iscar 5530456
MFR# 5530456Series SCD-AP3
$509.65List $652.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingCoated
Description
The Iscar 5530456 is a 0.6693" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Series SCD-AP3.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.007 to 0.025 mm
Drill bit size0.6693
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle140
Drill point length (mm)3.09
Drill tip finish coatingTiAlN
Flute by diameter ratio3xD
Flute length2.8740
Flute typeSpiral
Maximum drilling depth2.0079
Overall length4.8425
Shank diameter (mm)18.00
Shank length1.9685
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
StandardsDIN 6537
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
