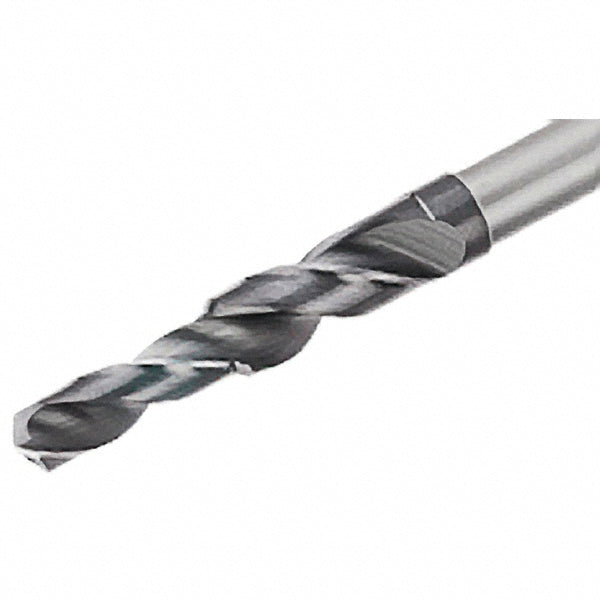

0.3346" Solid Carbide Drill Bit, TiAlN, 140° point - Iscar 5531415

Iscar

0.3346" Solid Carbide Drill Bit, TiAlN, 140° point - Iscar 5531415

MFR# 5531415Series SCDT-M10

$349.34List $447.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiAlN

Description

The Iscar 5531415 is a 0.3346" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, hard material, non-ferrous metal, stainless steel, steel, superalloys & titanium. Series SCDT-M10.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.006 to 0.021 mm
Drill bit finish coatingTiAlN
Drill bit materialSolid Carbide
Drill bit size0.3346
Drill bit size range0.3000 - 0.3500
Drill point angle degrees140
Drill point length (mm)1.55
Flute length (mm)55.00
Flute typeSpiral
Material gradeSubmicron
Maximum drilling depth (mm)25.50
Number of flutes2
Overall length (mm)102.00
Point typeStandard
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Stainless Steel; Steel; Superalloys & Titanium
Shank diameter (mm)12.00
Shank length (mm)40.00
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO 13399
Tool applicationHolemaking
Web configurationTapered
