Iscar

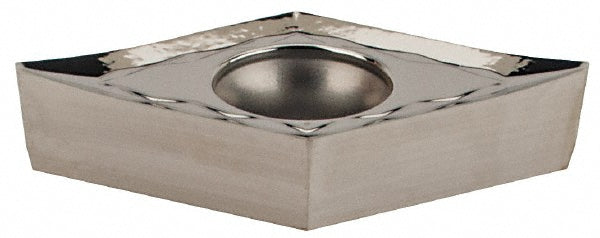

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 5540001
MFR# 5540001ISO/ANSI# ISO 13399Series Isoturn
$21.45List $27.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5540001 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for k, m, n.
Specifications
Chip breakerAS
Clearance codeC
Corner radius in1/64
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.4567
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-1
Insert styleDCGT
Insert thickness in5/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut0.0980
Primary workpiece materialK; M; N
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
