Iscar

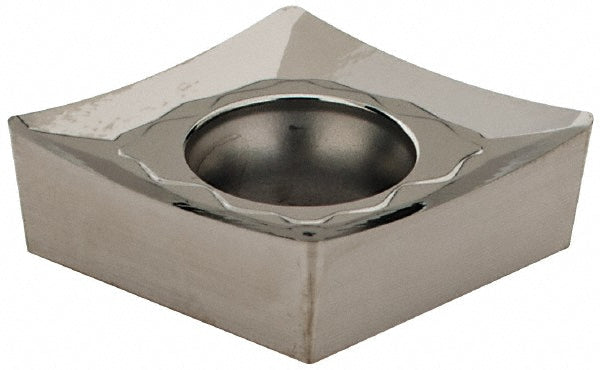

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 5540002
MFR# 5540002ISO/ANSI# ISO 13399Series Isoturn
$22.61List $29.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5540002 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for k, m, n.
Specifications
Chip breakerAS
Clearance codeC
Corner radius in1/32
Hole diameter0.2165
Included angle80.0
Inscribed circle in1/2
Insert holding methodScrew
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCCGT
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut0.1378
Primary workpiece materialK; M; N
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
