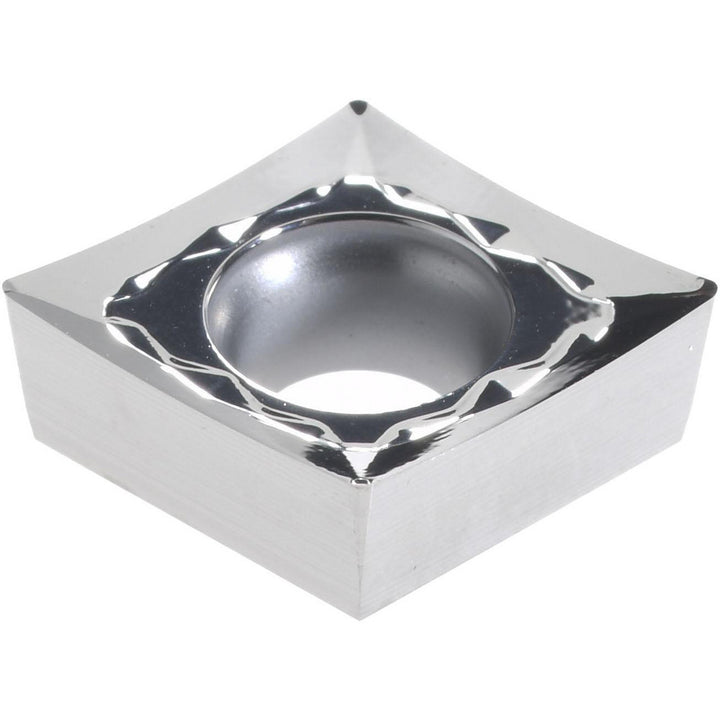

CCGT32.51 Carbide Insert, Grade IC20 - Iscar 5540004

Iscar

CCGT32.51 Carbide Insert, Grade IC20 - Iscar 5540004

MFR# 5540004ISO/ANSI# CCGT09T304Series Isoturn

$19.81List $25.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC20
MaterialCarbide

Description

The Iscar 5540004 is a CCGT32.51 carbide indexable insert, grade IC20.

Specifications

Ansi insert codeCCGT3-1
Ansi size code3-1
Chip breakerAS
Chip breaker operationFinishing
Clearance codeC
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3-1
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT32.51
Iso insert codeCCGT09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut0.0984
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Tolerance codeG
