Iscar

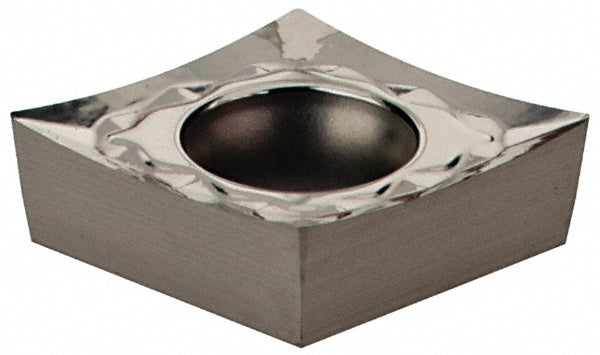

CCGT21.50.5 Solid Carbide Insert, Grade IC20 - Iscar 5540010
MFR# 5540010ISO/ANSI# CCGT21.50.5Series Isoturn
$18.32List $23.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5540010 is a CCGT21.50.5 solid carbide indexable insert, grade IC20. Suited for k, m, n.
Specifications
Chip breakerAS
Clearance codeC
Corner radius0.0079
Hole diameter0.1102
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2520
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-0
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT21.50.5
Length range0.0000 - 0.3000
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut0.0787
Primary workpiece materialK; M; N
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
