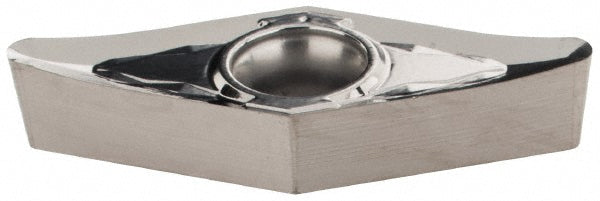

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 5540011
MFR# 5540011ISO/ANSI# ISO 13399Series Isoturn
$28.39List $36.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5540011 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for k, m, n.
Specifications
Chip breakerAS
Clearance codeC
Coating processUncoated
Corner radius in3/64
Hole diameter0.1732
Included angle35.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code333
Insert styleVCGT
Insert thickness in3/16
Iso codeISO 13399
Length range0.6500 - 0.7000
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut0.1180
Primary workpiece materialK; M; N
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
