Iscar

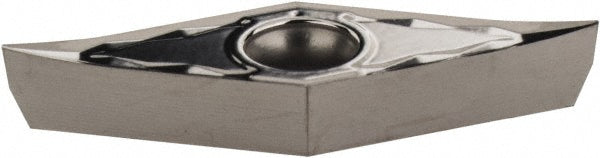

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 5540014
MFR# 5540014ISO/ANSI# ISO 13399Series Isoturn
$24.63List $31.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5540014 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerAS
Clearance codeC
Coating processUncoated
Corner radius0.0079
Hole diameter0.1142
Included angle35.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4370
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code220
Insert styleVCGT
Insert thickness in1/8
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC20
Maximum depth of cut0.0984
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
