Iscar

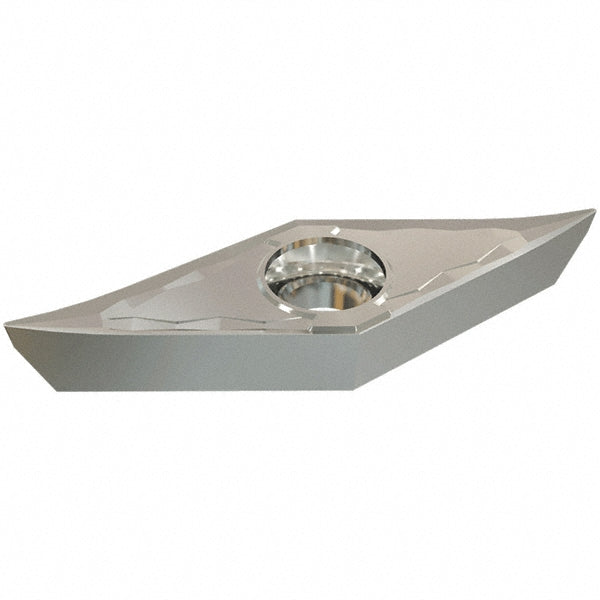

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 5540015
MFR# 5540015ISO/ANSI# ISO 13399Series Isoturn
$39.53List $50.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5540015 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerAS
Clearance codeC
Coating processUncoated
Corner radius0.1181
Hole diameter0.2165
Included angle35.0
Inscribed circle in1/2
Insert holding methodScrew
Insert length0.8701
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code220
Insert styleVCGT
Insert thickness in7/32
Iso codeISO 13399
Length range0.7000 - 10.0000
Manufacturer gradeIC20
Maximum depth of cut0.1772
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
