Iscar

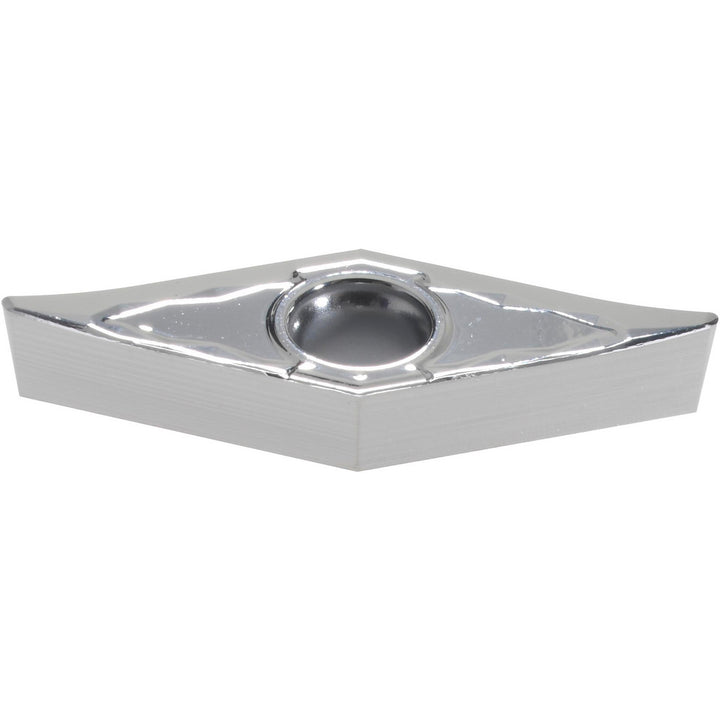

ISO 13399 Carbide Insert, Grade IC20 - Iscar 5540016
MFR# 5540016ISO/ANSI# VCGT110304Series Isoturn
$24.63List $31.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeV - Diamond (Rhombic) 35-Deg
GradeIC20
MaterialCarbide
Description
The Iscar 5540016 is a ISO 13399 carbide indexable insert, grade IC20. Suited for universal.
Specifications
Ansi insert codeVCGT221
Ansi size code221
Chip breakerAS
Chip breaker operationFinishing
Clearance codeC
Coating processUncoated
Corner radius0.0157
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1140
Included angle35
Inscribed circle0.2500
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVCGT
Iso codeISO 13399
Iso insert codeVCGT110304
Iso size code110304
Manufacturer gradeIC20
Maximum depth of cut0.1180
Primary workpiece materialUniversal
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Tolerance codeG
