Iscar

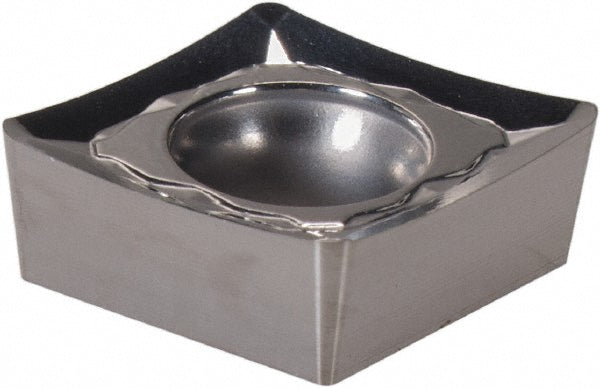

CCGT 3-2-AS Solid Carbide Insert, Grade IC20 - Iscar 5540018
MFR# 5540018ISO/ANSI# CCGT 3-2-ASCat# CCGT 3-2-ASSeries Isoturn
$19.81List $25.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5540018 is a CCGT 3-2-AS solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerAS
Clearance codeC
Corner radius in1/32
Hole diameter0.1730
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-2
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT 3-2-AS
Length range0.3000 - 0.4000
Manufacturers catalog numberCCGT 3-2-AS
Manufacturer gradeIC20
Maximum depth of cut0.1180
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
