Iscar

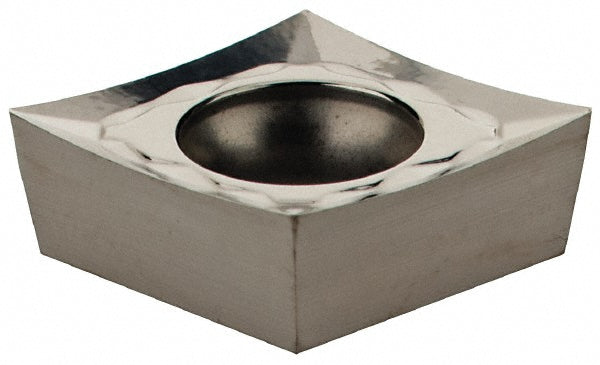

CCGT32.50.5 Solid Carbide Insert, Grade IC20 - Iscar 5540020
MFR# 5540020ISO/ANSI# CCGT32.50.5Series Isoturn
$19.81List $25.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5540020 is a CCGT32.50.5 solid carbide indexable insert, grade IC20. Suited for k, m, n.
Specifications
Chip breakerAS
Clearance codeC
Corner radius0.0079
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-0
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT32.50.5
Length range0.3000 - 0.4000
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut0.0984
Primary workpiece materialK; M; N
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
