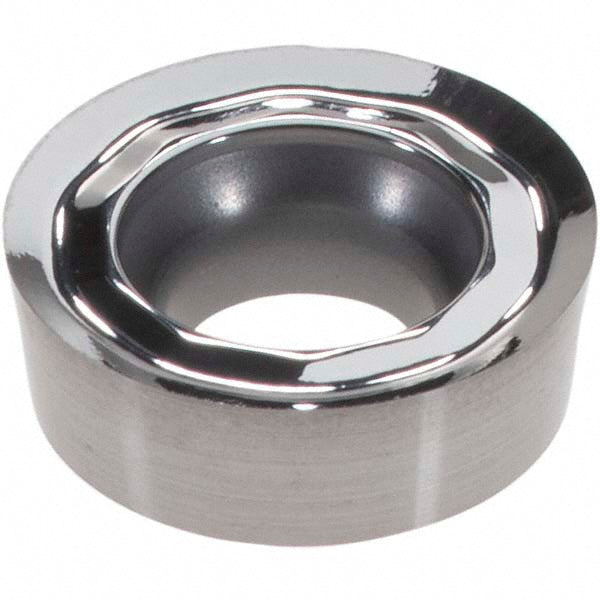

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 5540022
MFR# 5540022ISO/ANSI# ISO 13399Series Isoturn
$12.32List $15.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5540022 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerAS
Clearance codeC
Hole diameter0.1575
Inscribed circle0.3937
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size code1003M0
Insert styleRCGT
Insert thickness in1/8
Iso codeISO 13399
Manufacturer gradeIC20
Maximum depth of cut0.1969
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
