Iscar

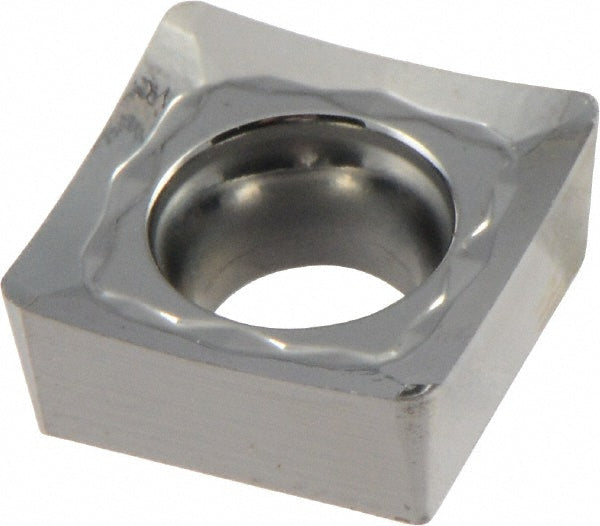

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 5540028
MFR# 5540028ISO/ANSI# ISO 13399Series Isoturn
$17.15List $22.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5540028 is a ISO 13399 solid carbide indexable insert, grade IC20.
Specifications
Chip breakerAS
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1732
Included angle90.0
Inscribed circle in3/8
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size code3-2
Insert styleSCGT
Insert thickness in5/32
Iso codeISO 13399
Manufacturer gradeIC20
Maximum depth of cut0.1181
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
Width in3/8
