Iscar

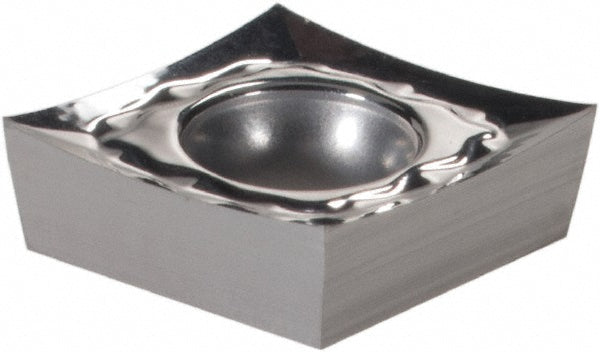

CCGT 2-.004-AS Solid Carbide Insert, Grade IC20 - Iscar 5540029
MFR# 5540029ISO/ANSI# CCGT 2-.004-ASCat# CCGT 2-.004-ASSeries Isoturn
$18.32List $23.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5540029 is a CCGT 2-.004-AS solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerAS
Clearance codeC
Coating processUncoated
Corner radius0.0040
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2520
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-004
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT 2-.004-AS
Length range0.0000 - 0.3000
Manufacturers catalog numberCCGT 2-.004-AS
Manufacturer gradeIC20
Maximum depth of cut0.0790
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
