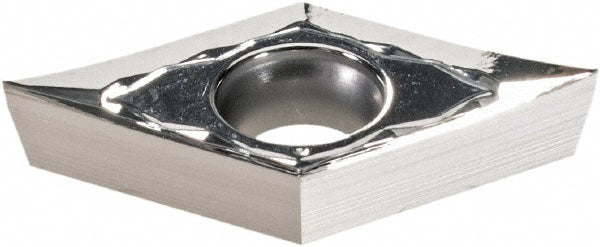

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 5540031
MFR# 5540031ISO/ANSI# ISO 13399Series Isoturn
$18.64List $23.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5540031 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerAS
Clearance codeC
Coating processUncoated
Corner radius0.0039
Hole diameter0.1102
Included angle55.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.3051
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-004
Insert styleDCGT
Insert thickness in3/32
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC20
Maximum depth of cut0.0787
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
