Iscar

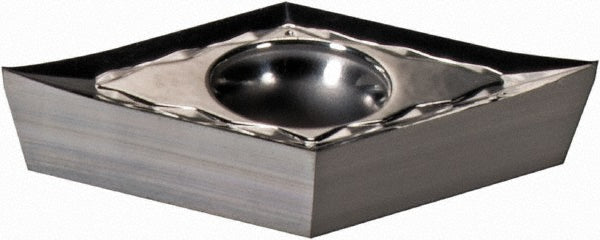

DCGT 3-.004-AS Carbide Insert, Grade IC20 - Iscar 5540032
MFR# 5540032ISO/ANSI# DCGT 3-.004-ASCat# DCGT 3-.004-ASSeries Isoturn
$21.45List $27.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC20
MaterialCarbide
Description
The Iscar 5540032 is a DCGT 3-.004-AS carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerAS
Clearance codeC
Coating processUncoated
Corner radius0.0040
Hole diameter0.1730
Included angle55
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.4570
Insert materialCarbide
Insert shapeDiamond
Insert size code3-004
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT 3-.004-AS
Length range0.4000 - 0.5000
Manufacturers catalog numberDCGT 3-.004-AS
Manufacturer gradeIC20
Maximum depth of cut0.0980
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
