Iscar

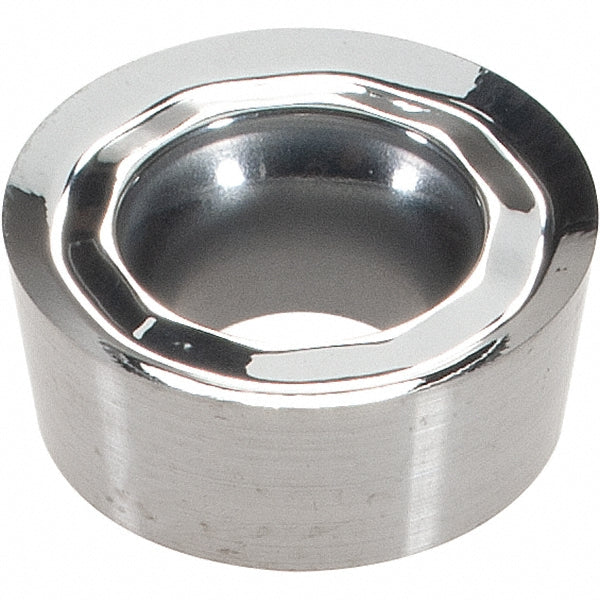

ISO 13399 Carbide Insert, Grade IC20 - Iscar 5540034
MFR# 5540034ISO/ANSI# ISO 13399Series Isoturn
$12.32List $15.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeIC20
MaterialCarbide
Description
The Iscar 5540034 is a ISO 13399 carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerAS
Clearance codeC
Coating processUncoated
Hole diameter0.1732
Inscribed circle0.3937
Insert holding methodClamp
Insert materialCarbide
Insert shapeRound
Insert size code10T3M0
Insert styleRCGT
Insert thickness in5/32
Iso codeISO 13399
Manufacturer gradeIC20
Maximum depth of cut0.1969
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
