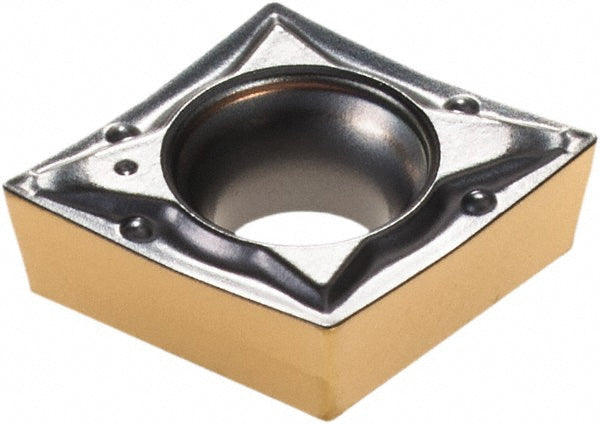

ISO 13399 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5550207
MFR# 5550207ISO/ANSI# ISO 13399Series Isoturn
$13.64List $17.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5550207 is a ISO 13399 solid carbide indexable insert, grade IC807, TiAlN coated.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1102
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-0
Insert styleCCMT
Insert thickness in3/32
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.0984
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
