Iscar

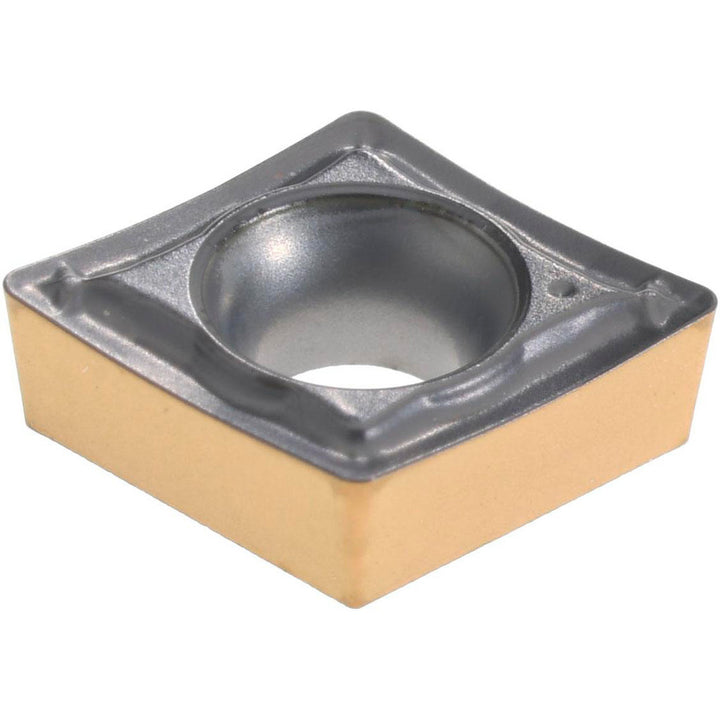

ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 5550211
MFR# 5550211ISO/ANSI# CCMT060204Series Isoturn
$13.88List $17.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC807
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5550211 is a ISO 13399 carbide indexable insert, grade IC807, TiAlN coated. Suited for universal.
Specifications
Ansi insert codeCCMT2-1
Ansi size code2-1
Chip breakerSM
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Supe
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2-1
Insert styleCCMT
Insert thickness in3/32
Iso codeISO 13399
Iso insert codeCCMT060204
Iso size code060204
Length range0.0000 - 0.3000
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.0984
Primary workpiece materialUniversal
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Tolerance codeM
