Iscar

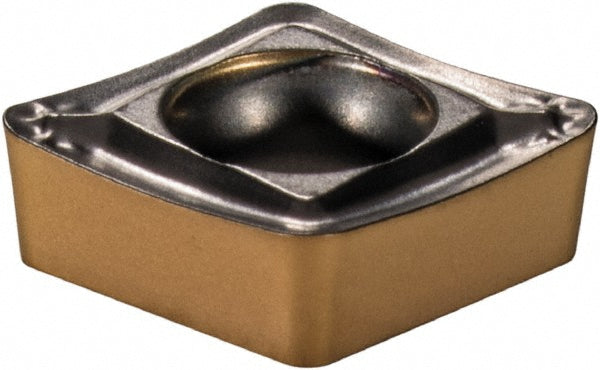

CCMT 2-2-SM Solid Carbide Insert, Grade IC807, TiN - Iscar 5550213
MFR# 5550213ISO/ANSI# CCMT 2-2-SMCat# CCMT 2-2-SMSeries Isoturn
$13.64List $17.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5550213 is a CCMT 2-2-SM solid carbide indexable insert, grade IC807, TiN coated. Suited for universal.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-1
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 2-2-SM
Length range0.0000 - 0.3000
Manufacturers catalog numberCCMT 2-2-SM
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.0980
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle7
Single or double endSingle
StandardsISO 13399
Tolerance codeM
