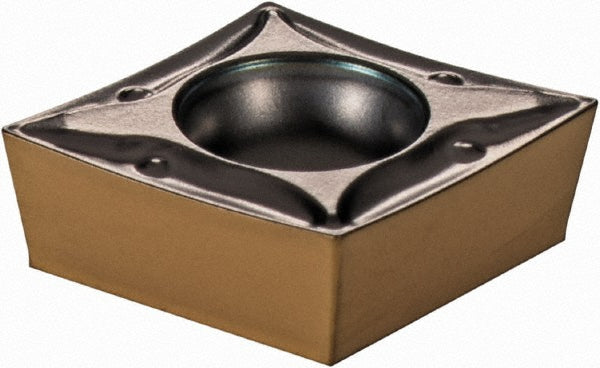

CCMT 3-0-PF Solid Carbide Insert, Grade IC807, TiN - Iscar 5550214

Iscar

CCMT 3-0-PF Solid Carbide Insert, Grade IC807, TiN - Iscar 5550214

MFR# 5550214ISO/ANSI# CCMT 3-0-PFCat# CCMT 3-0-PFSeries Isoturn

$18.80List $23.70 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiN

Description

The Iscar 5550214 is a CCMT 3-0-PF solid carbide indexable insert, grade IC807, TiN coated. Suited for universal.

Specifications

Chip breakerPF
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius0.0080
Hole diameter0.1730
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-0
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 3-0-PF
Length range0.3000 - 0.4000
Manufacturers catalog numberCCMT 3-0-PF
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1180
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
