Iscar

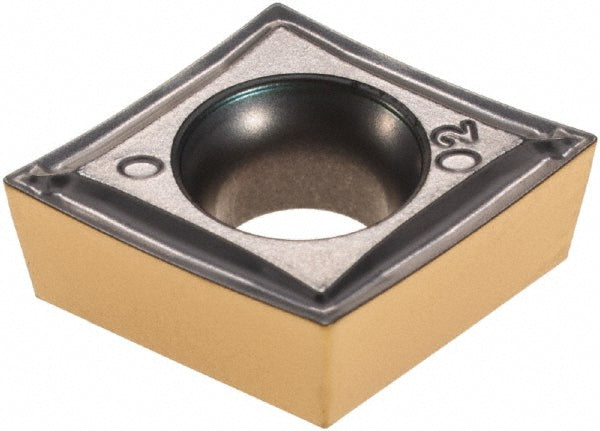

ISO 13399 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5550215
MFR# 5550215ISO/ANSI# ISO 13399Series Isoturn
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5550215 is a ISO 13399 solid carbide indexable insert, grade IC807, TiAlN coated. Suited for universal.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-0
Insert styleCCMT
Insert thickness in5/32
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.0984
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
