Iscar

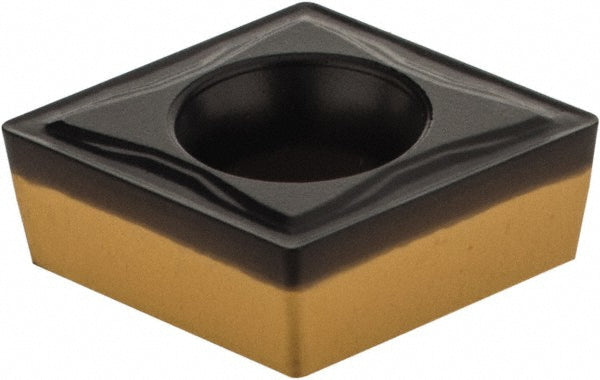

CCMT32.51 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5550217
MFR# 5550217ISO/ANSI# CCMT32.51Series Isoturn
$17.00List $21.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5550217 is a CCMT32.51 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for p.
Specifications
Chip breaker14
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-1
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT32.51
Length range0.3000 - 0.4000
Manufacturer gradeIC8250
Maximum depth of cut0.1181
Primary workpiece materialP
RakePositive
Relief angle7
Secondary workpiece materialM
StandardsISO 13399
Tolerance codeM
