Iscar

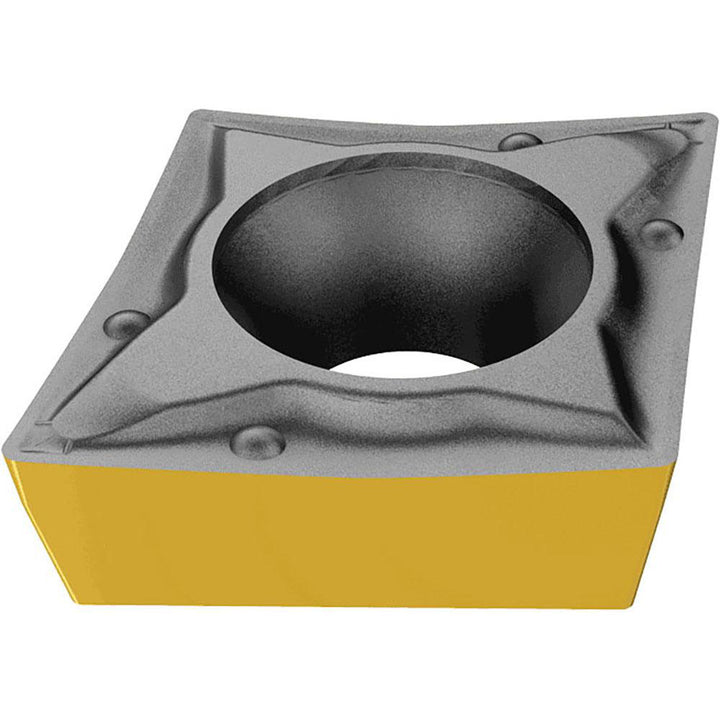

ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 5550218
MFR# 5550218ISO/ANSI# ISO 13399Series Isoturn
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeIC807
CoatingTiAlN
Description
The Iscar 5550218 is a ISO 13399 carbide indexable insert, grade IC807, TiAlN coated.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Hole diameter0.1730
Included angle80.0
Insert shapeDiamond
Insert size code3-1
Insert styleCCMT
Iso codeISO 13399
Manufacturer gradeIC807
Maximum depth of cut0.1380
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
