Iscar

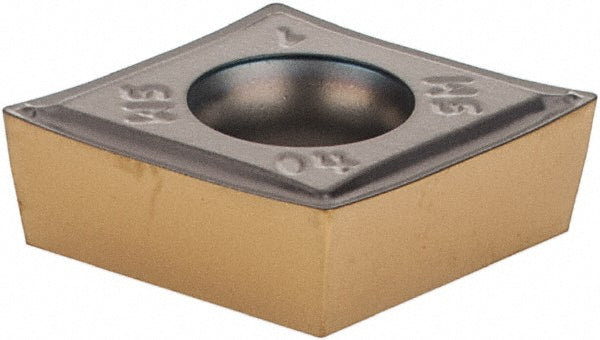

ISO 13399 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5550223
MFR# 5550223ISO/ANSI# ISO 13399Series Isoturn
$20.11List $25.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5550223 is a ISO 13399 solid carbide indexable insert, grade IC807, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.2170
Included angle80.0
Inscribed circle in1/2
Insert holding methodScrew
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCCMT
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1378
Primary workpiece materialM; P; S
RakePositive
Relief angle7
StandardsISO 13399
Stocking categoryD
Tolerance codeM
