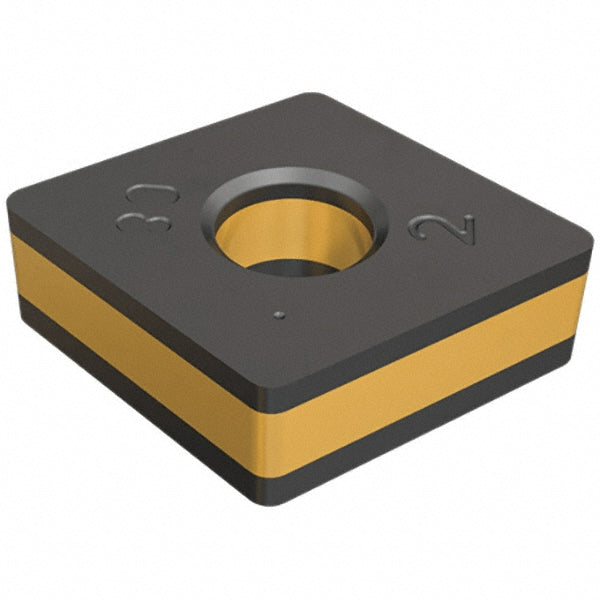

ISO 13399 Solid Carbide Insert, Grade IC5010, TiCN/Al2O3/TiN - Iscar 5550236
MFR# 5550236ISO/ANSI# ISO 13399Series Isoturn
$30.25List $38.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeIC5010
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Iscar 5550236 is a ISO 13399 solid carbide indexable insert, grade IC5010, TiCN/Al2O3/TiN coated. Suited for cast iron.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius in3/64
Included angle80.0
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code543
Insert styleCNMA
Insert thickness in1/4
Iso codeISO 13399
Manufacturer gradeIC5010
Maximum depth of cut0.3940
Primary workpiece materialCast Iron
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
